Description

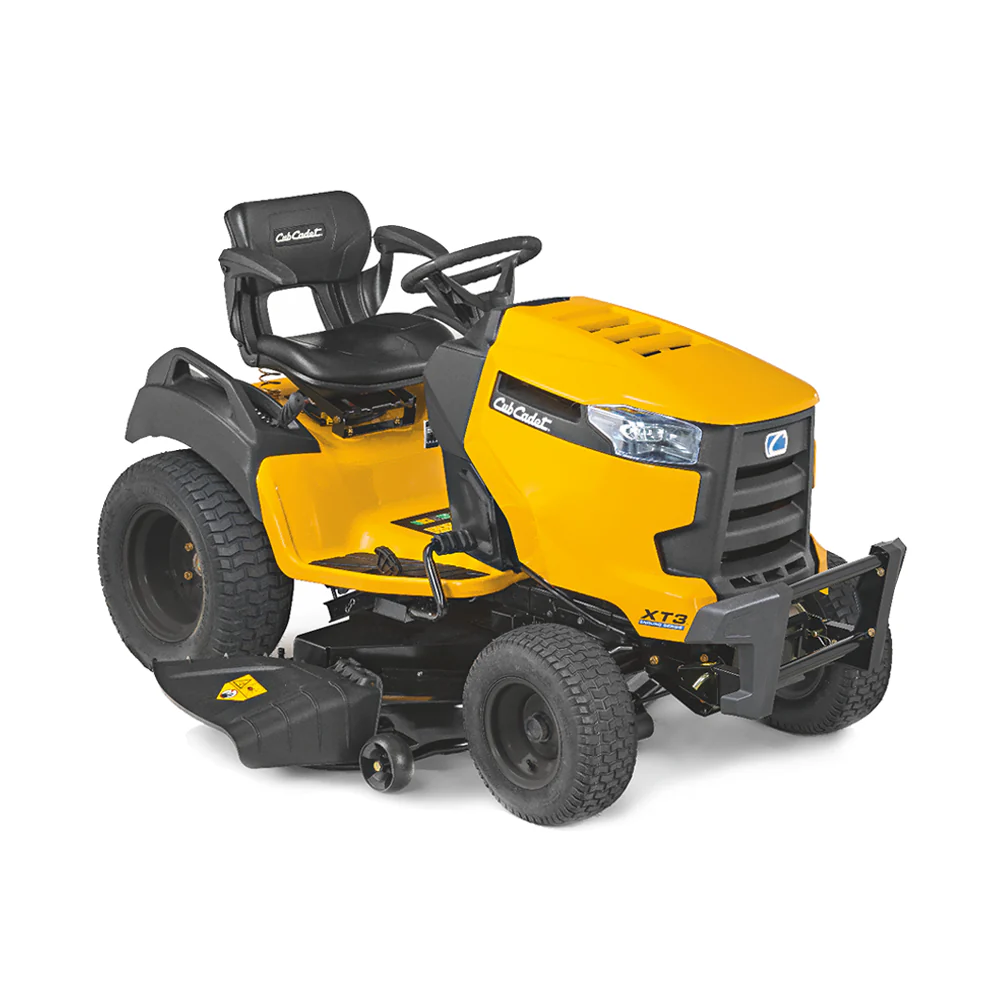

Designed for the toughest of jobs, powered by real powerhouses and equipped with ultra-strong components – the Cub Cadet XT3 is the ultimate lawn tractor. The XT3 has plenty of power for mowing even tall, thick grass, transporting larger loads and handling the heaviest of tillage attachments.
product highlights
- 360 liter grass catcher volume
- Powerful Kawasaki V-TWIN engine
- Hydrostatic power transmission
- anti-dust system
- 17cm turning radius
A real powerhouse with ultra-strong components
product data

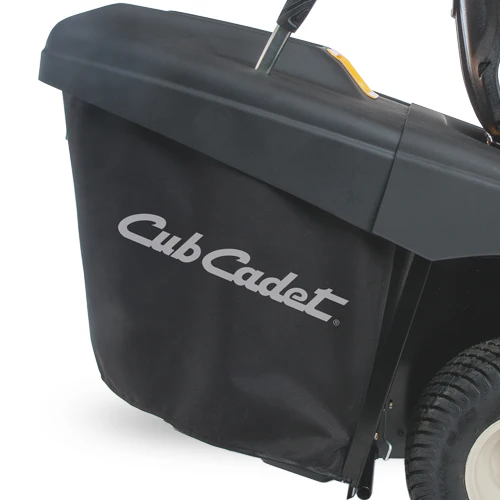

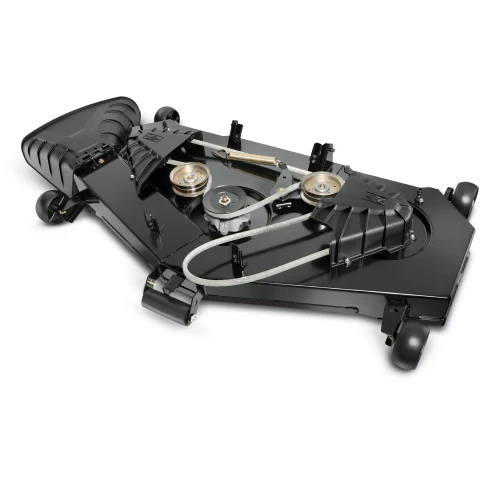

MARKET-LEADING CUTTING, COLLECTION & MULCHING SYSTEM |

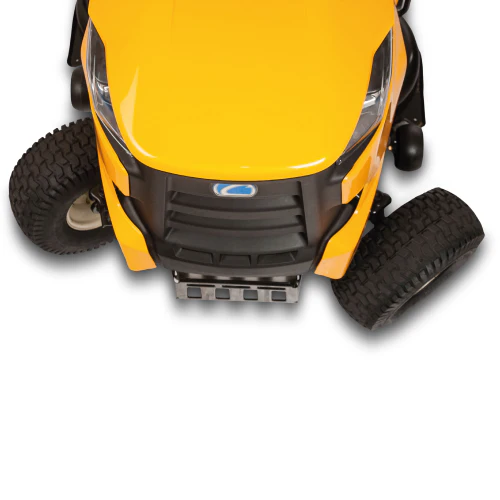

SMALLEST TURNING CIRCLE OF THE MARKET
Thanks to innovative TIGHT TURN technology, unrivalled efficiency even in tight spaces.
|

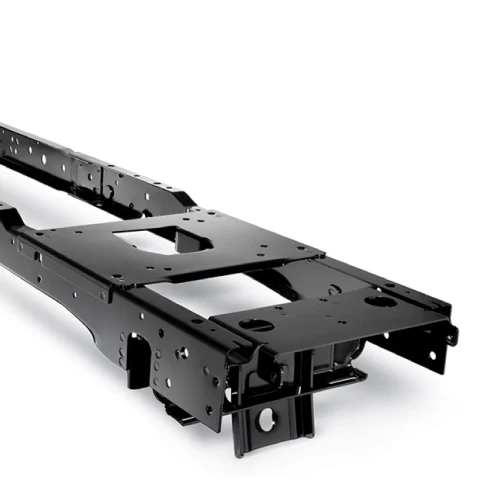

EXTREMELY SOLID AND CORROSION-RESISTANT FRAME
Torsion-free frame construction for maximum durability.
|

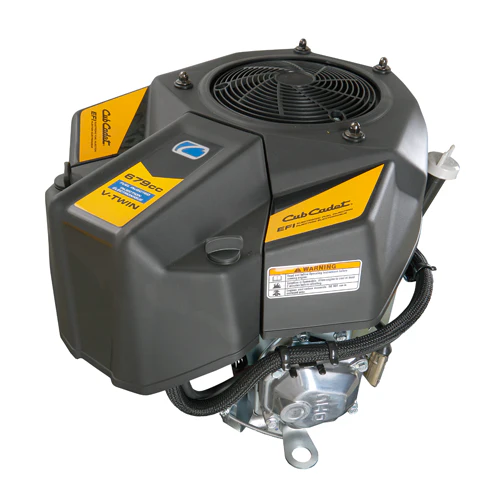

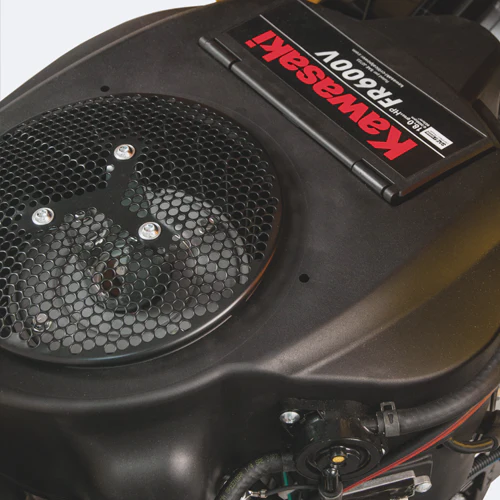

POWERFUL KAWASAKI V-TWIN ENGINE
Two-cylinder engine for demanding terrain with particularly smooth running and low fuel consumption.
|

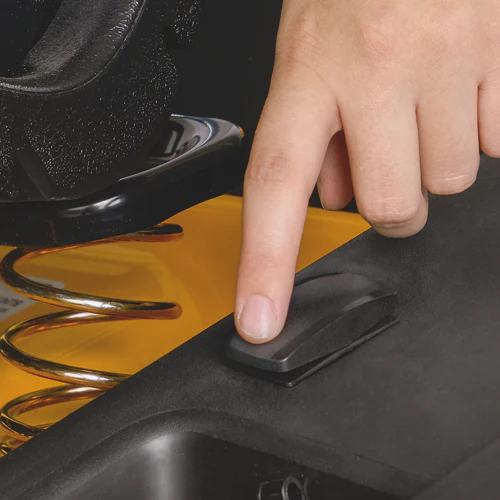

ELECTRIC COLLECTION BASKET EMPTYING
One push of a button – and the grass catcher is lifted and the clippings are tipped out without any effort, even when the volume is high. Universal accessories can be retrofitted for all XT models from 2018.
|

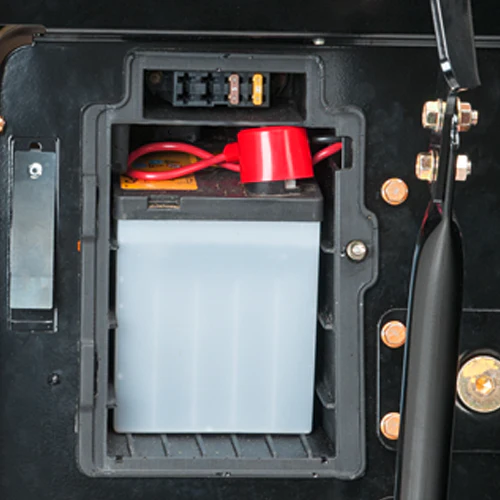

POWERFUL BATTERY
Significantly extended service life ensures longer performance. Wet battery with 22 Ah, no need to add acid. |
Technical data
| MOTOR | XT3 QS127 |
| engine type | Kawasaki |
| displacement (cm3) | 726 |
| device power (kW/min-1) | 13.7 / 2800 |
| start | V-TWIN cylinder |
| tank volume (capacity) (l) | 11.4 |
| DRIVE SYSTEM | |
| transmission | hydrostatic |
| air speed | (f/r) continuously variable |
| speed control | foot pedal control |
| cruise control | standard |
| CUTTING SYSTEM | |
| Recommended area performance (m 2 /h) | 10,000 |
| cutting width | 127 |
| cutting height | 25-100 |
| number of knives | 3 |
| mower engagement | Electric at the push of a button |
| cutting stages | 12 positions |
| mower rollers | 4 ball deck wheels + roller |
| washer nozzle/mulching kit | Standard/Standard |
| EJECTION SYSTEM | |
| Collection bag (capacity) (l)/Accessory No. | optional 210/optional (19A30018100) |
| level indicator/grass deflector | – / Standard |
| FRAME | |
| front axle | cast iron |
| bumper | bull bar bumper |
| turning radius (cm) | TIGHT TURN xTREME 17 |
| Wheels (front/rear) (inches) | 16 x 6.5–8 / 22 x 9.5 |
| wheel bearings | ball bearings |
| Frame | Completely robot-welded frame |
| ELECTRICS | |
| headlights | LED |
| COMFORT | |
| seat type | Cut & Sew, high backrest |
| seat adjustment | Comfortable diagonal seat adjustment |
| steering wheel | Ergonomic with a pleasant feel |
| toolbox / cup holder | Standard / Standard |
| reverse mowing option (RevTEK) | standard |
| DIMENSIONS | |
| LpA /LwA/LwAg (dB) (dB) | 90.6 / 104.2 / 105 |
| Vibration value body (K-factor) (m/s²) | 0.39 / 0.5 |
| Vibration value arm/(K-factor) (m/s²) | 2.4 / 1.5 |
| Dimensions (L / W / H) (cm) | 197 / 155 / 110 |
| Weight | 260kg |
